Cast Iron Fireplace Grate: Complete Expert Guide

by

Introduction

A weak fireplace grate can ruin your entire fire experience.
 Logs won’t burn properly. Heat stays trapped. Ash builds up fast.

If you want stronger flames, better airflow, and longer-lasting fires, a cast-iron fireplace grate can make a huge difference. In this detailed guide, you’ll learn how to choose the right one, avoid common mistakes, and get the most heat from your fireplace.

What Is a Cast Iron Fireplace Grate?

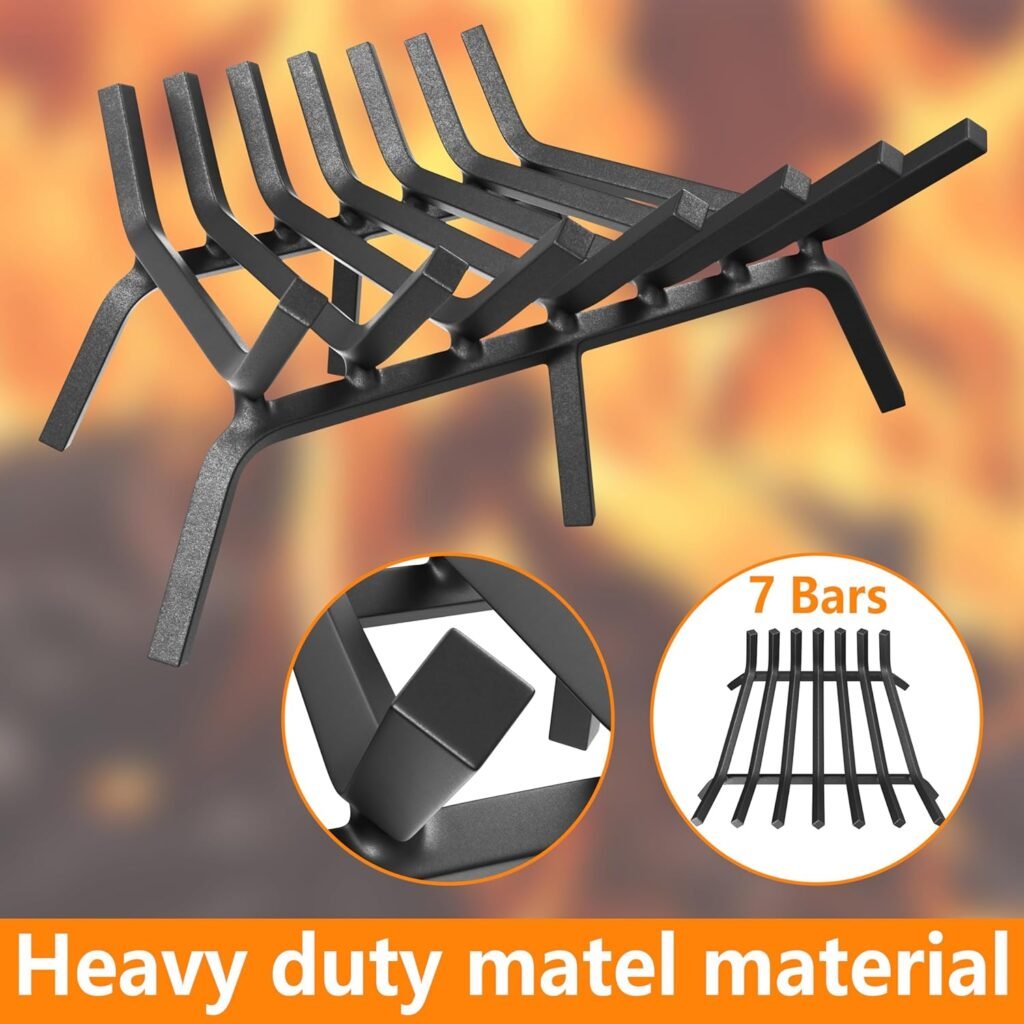

A cast-iron fireplace grate is a heavy-duty metal frame placed inside a fireplace. It holds firewood above the floor of the firebox.

Why It Matters

By lifting the logs:

  • Air flows underneath the wood

  • Fire burns hotter and cleaner

  • Ash falls below the grate

  • Heat radiates better into the room

Without a grate, wood sits flat, restricting airflow and reducing efficiency.

Table of Contents

Why Cast Iron Is the Best Material for Fireplace Grates

1. Superior Heat Retention

Cast iron absorbs heat and slowly releases it into the room. This improves overall warmth.

2. Exceptional Durability

  • Withstands high temperatures

  • Resistant to warping

  • Long lifespan (often 10+ years)

3. Heavy-Duty Construction

Unlike lightweight steel grates, cast iron does not bend easily under heavy logs.

4. Traditional Aesthetic

Cast iron adds a classic, rustic look to fireplaces.

Cast Iron Fireplace Grate
Check price on amazon

How a Fireplace Grate Improves Heat Output (Featured Snippet Optimized)

A cast iron fireplace grate improves heat output by:

  • Raising logs for better oxygen flow

  • Allowing complete combustion

  • Radiating stored heat into the room

  • Reducing smoke buildup

Better airflow = hotter fire = more warmth.

Types of Cast Iron Fireplace Grates

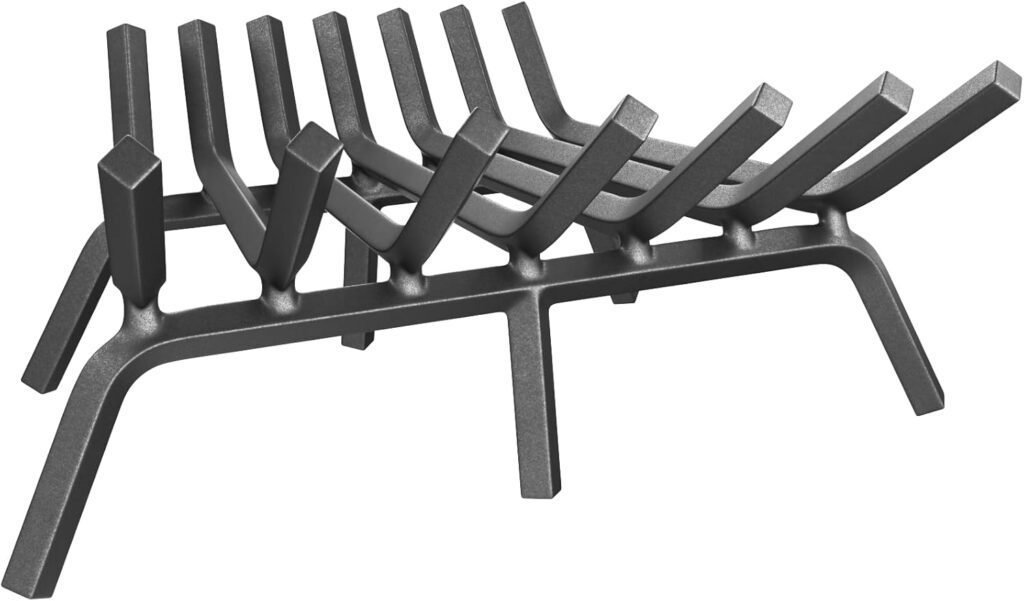

1. Bar Grates

  • Parallel iron bars

  • Most common design

  • Best for wood-burning fireplaces

2. Basket Grates

  • Decorative style

  • Often used in traditional fireplaces

  • Holds smaller logs

3. Self-Feeding Grates

  • Sloped design

  • Logs roll forward as they burn

Ideal for long burn sessions

Cast Iron vs Steel Fireplace Grates

Feature

Cast Iron

Steel

Durability

Very high

Moderate

Heat Retention

Excellent

Low

Weight

Heavy

Lightweight

Price

Moderate to High

Lower

Lifespan

8–15 years

2–5 years

Warping Risk

Very low

Higher

Verdict: Cast iron costs more upfront but lasts longer and performs better.

Cast Iron Fireplace Grate
Check price on amazon

How to Choose the Right Cast Iron Fireplace Grate

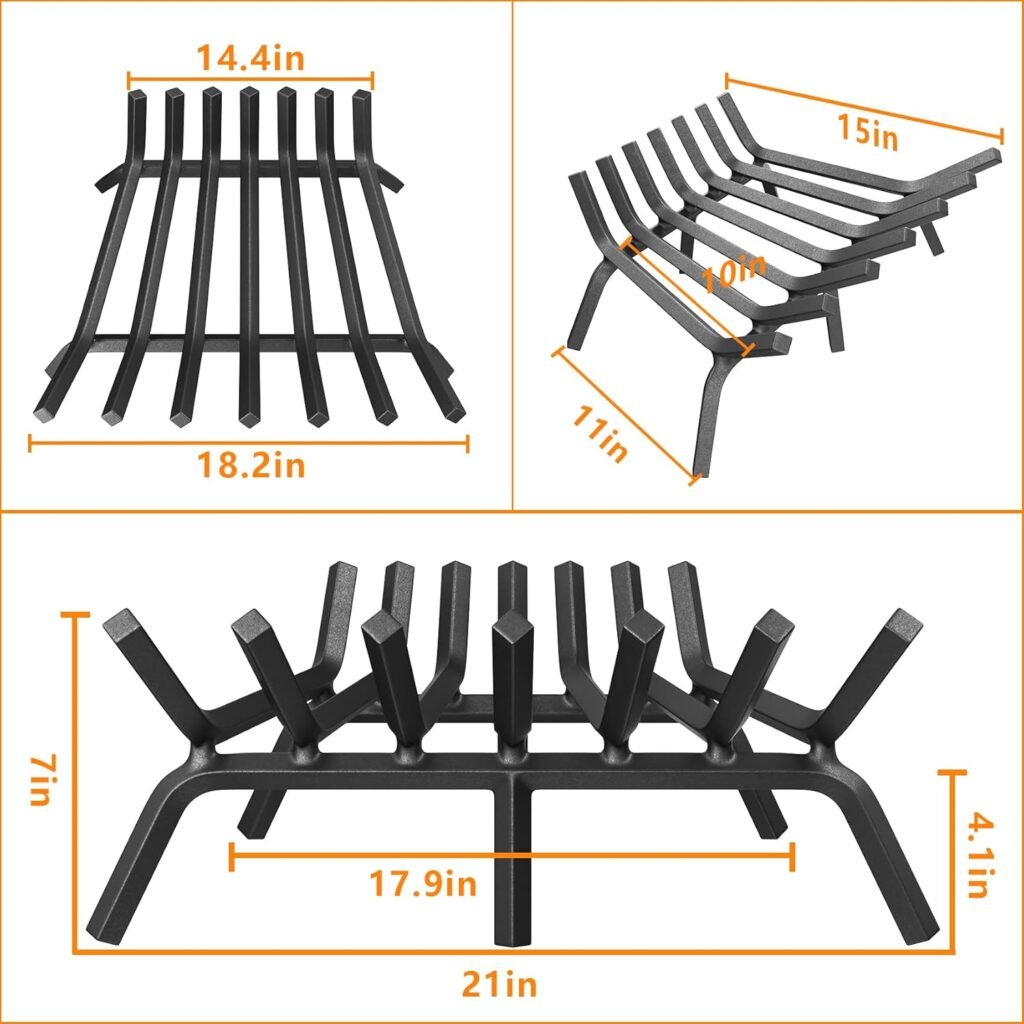

1. Measure Your Fireplace Correctly

Measure:

  • Width at the front

  • Width at the back

  • Depth

  • Height clearance

Choose a grate that is:

  • 3–6 inches narrower than the fireplace width

  • Leaves space around edges for airflow

2. Choose the Right Size

Common sizes:

  • 18-inch (small fireplaces)

  • 24-inch (standard fireplaces)

  • 30-inch (large fireplaces)

Too large = poor airflow
 Too small = unstable logs

3. Check Bar Thickness

Thicker bars mean:

  • Better durability

  • Less bending

  • Longer lifespan

Look for at least ½ inch thick bars.

4. Look for Elevated Design

A good grate should lift logs at least 3–4 inches above the floor.

This allows ash to fall below and air to circulate freely.

5. Consider Weight

Heavier grates are usually stronger. Lightweight grates may crack under heavy logs.

Cast Iron Fireplace Grate
Check price on amazon

Installation Guide

Installing a cast-iron fireplace grate is simple:

  1. Clean out old ash and debris

  2. Place grate centered in firebox

  3. Ensure level positioning

  4. Leave space around the sides for airflow

No tools required.

Maintenance Tips for Long Lifespan

Cast iron is strong, but it still needs care.

After Every Fire

  • Remove ash buildup

  • Check for cracks

Seasonal Maintenance

  • Lightly brush off rust spots

  • Apply high-temperature stove paint if needed

  • Store indoors if unused for long periods

Avoid pouring water on a hot grate — sudden cooling can cause the surface to crack.

Pros and Cons of Cast Iron Fireplace Grates

Pros

  • Long-lasting and durable

  • Excellent heat retention

  • Improves airflow

  • Reduces smoke

  • Classic appearance

Cons

  • Heavy to move

  • Higher initial cost

  • Can rust if neglected

Common Mistakes to Avoid

  • Buying the wrong size

  • Choosing thin, low-quality bars

  • Placing the grate too close to the back wall

  • Not cleaning ash regularly

These mistakes reduce performance and lifespan.

Safety Considerations

  • Never overload with oversized logs

  • Keep flammable items away

  • Use a fireplace screen

  • Inspect for cracks annually

Safety always comes first.

FAQ Section

1. Do I really need a fireplace grate?

Yes. It improves airflow, burns wood more efficiently, and increases heat output.

2. How long does a cast-iron fireplace grate last?

If you maintain it well, a cast-iron fireplace grate can easily serve you for 8 to 15 years, sometimes even longer.



3. What size grate should I buy?

Choose one 3–6 inches smaller than your fireplace opening for proper airflow.

4. Can cast iron grates crack?

Yes, but usually only from extreme temperature shock or heavy impact.

5. Is cast iron better than steel for fireplaces?

Yes. Cast iron lasts longer and handles heat better.

6. How high should a fireplace grate sit?

Ideally, 3–4 inches above the firebox floor for proper oxygen flow.

7. Can I use a fireplace without a grate?

Yes, but it will burn less efficiently and produce more smoke.
